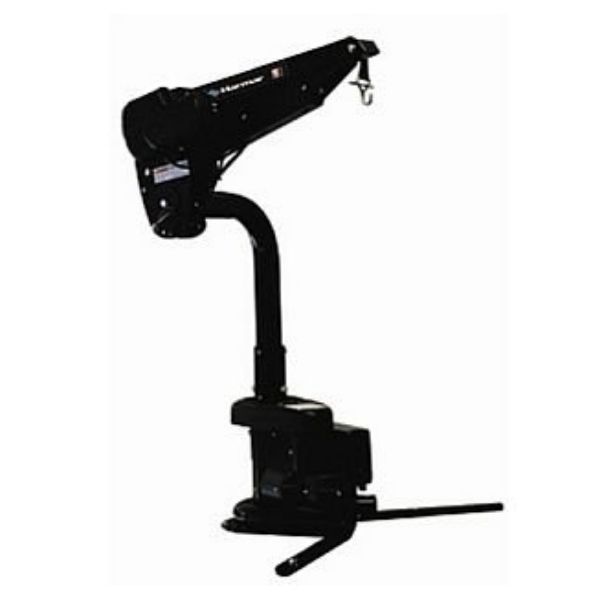

AL435 Axis III by Harmar
The AL435 Axis III vehicle lift by is one of the more versatile and flexible lifts than any other inside lift on the market today. It will fit in most vehicles including pickup trucks, full-sized vans, mini-vans, and SUVs. The Axis III bolts into the floor of the trunk or cargo area and has an adjustable arm angle that folds for additional storage and with fully powered lifting, boom arm and rotation loading is effortless.
The AL435 has an additional 12" reach so this lift can be used on larger vehicles or vehicles with liftgates. The 200º of rotation allows you to position your power wheelchair or mobility scooter on the sidewalk next to your vehicle and the offset arm provides more clearance around a vehicle opening, so your vehicle and mobility device are both safe.
WHAT YOU SHOULD KNOW WHEN YOU ORDER:
Lifts such as this one which bolt to floor or are wired to your vehicle’s battery can be challenging to install if you are not mechanically inclined. We do offer professional assembly as an option if you feel it is necessary.
AL435 Axis III Benefits & Features:
- Fully-powered lifting, boom arm and rotation for effortless loading
- Only 30” of headroom required
- Infinite adjustability of the lift and a variety of interchangeable sub-bases allow for faster installations in more applications
- Offset post allows the mobility device to be safely unloaded on the side of the vehicle
- Installs on either side of vehicle / easily switchable in the field
- Weather resistant hand control (wireless option available)
- Docking device included
- Universal sub base included; custom upgrades available
Important Note: Additional Parts May Be Required
Please be aware that the functionality of the mobility lift may depend on your specific mobility device. Additional parts might be needed for compatibility. Our Customer Service Rep will contact you after you placed your order to discuss any necessary adjustments. Your safety is our priority.
Adjustable Boom Height: | 31" to 39" |
---|
Adjustable Boom Length: | 21" to 33" |
Power Source: | Hardwired |
Adjustable Boom Pitch: | 0" to 35" |
Professional Install Available: | Yes |
Service Contract Available: | No |
Operation: | Power |
Boom Adjustment Range: | 21" to 33" |
Lifting Capacity: | 400 lbs. |
Recommended For: | Travel Scooters Full Sized Scooters Full-Size Power Wheelchairs |
Headroom Required: | 30" |
Installed Product Weight: | 114 lbs. |
Type of Lift: | Inside Lift |
Warranty: | 3 Year Limited Warranty |
Warranty - Transferable Warranty | Yes |
Product Weight | 76 lbs. |
Box 1 | |
Shipping Weight | 98.00 lbs |
Length: | 39.00" |
Width: | 21.00" |
Height | 14.00" |
Warranty Information for the AL435 Axis III
HARMAR VEHICLE LIFT WARRANTY
Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.
This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
